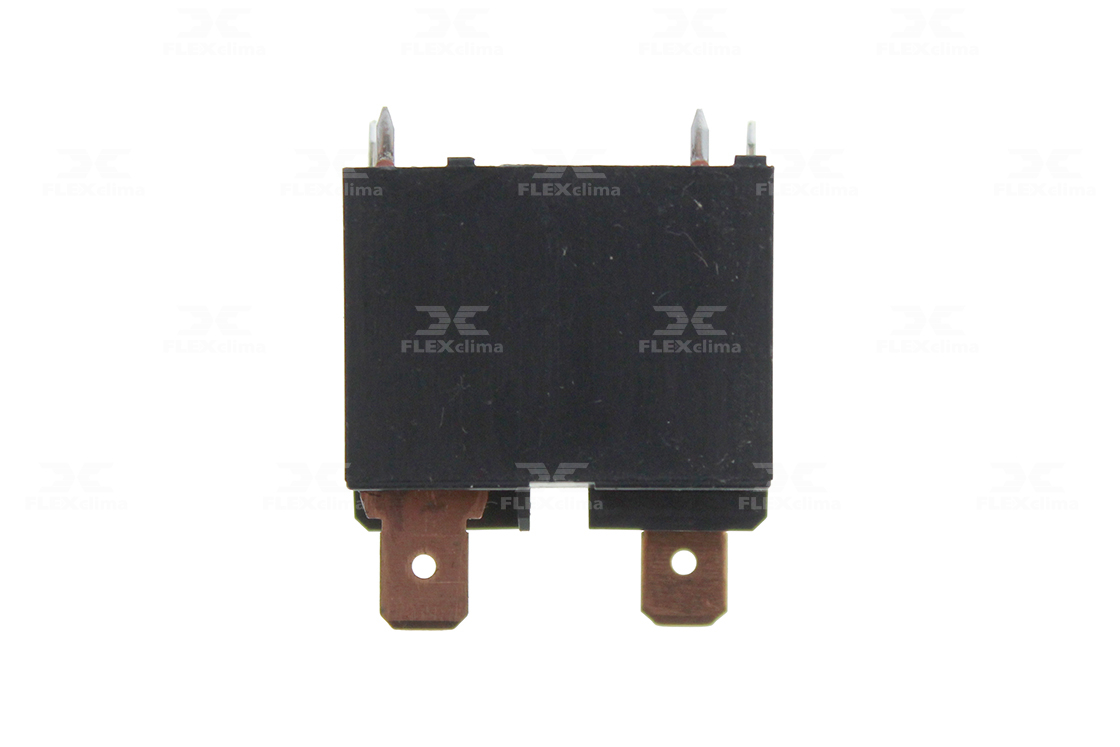

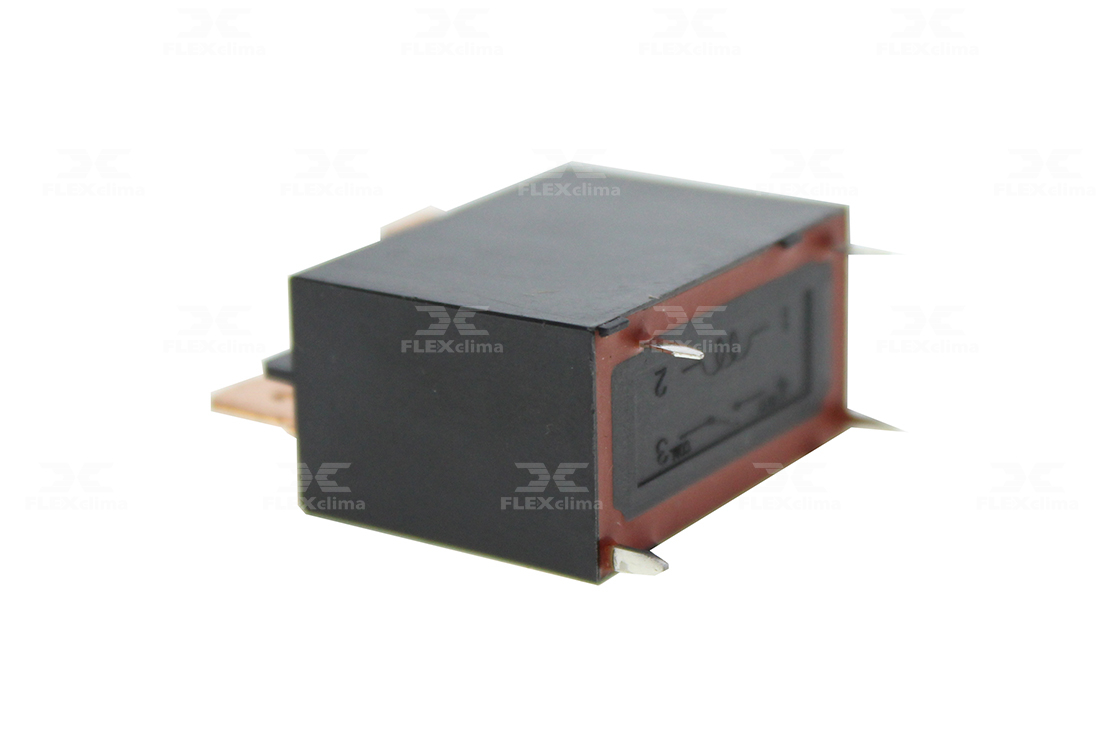

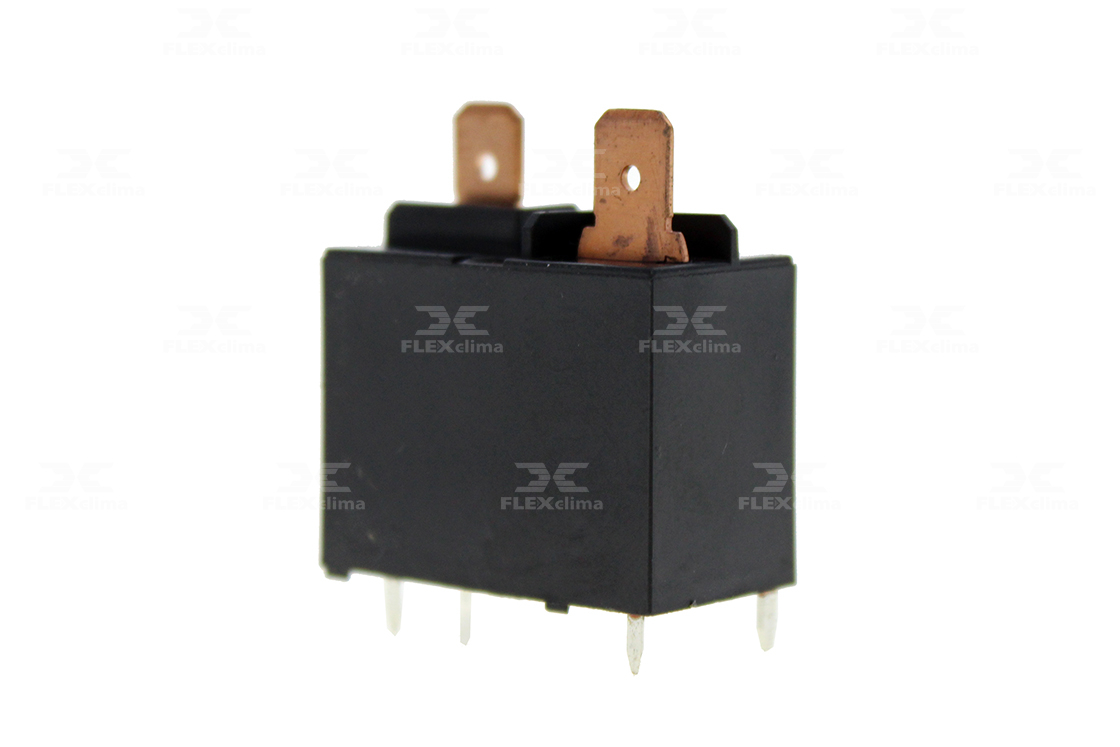

10120001 - RELÉ PLACA EVAPORADORA (GT-1A-12D) 12V/25A

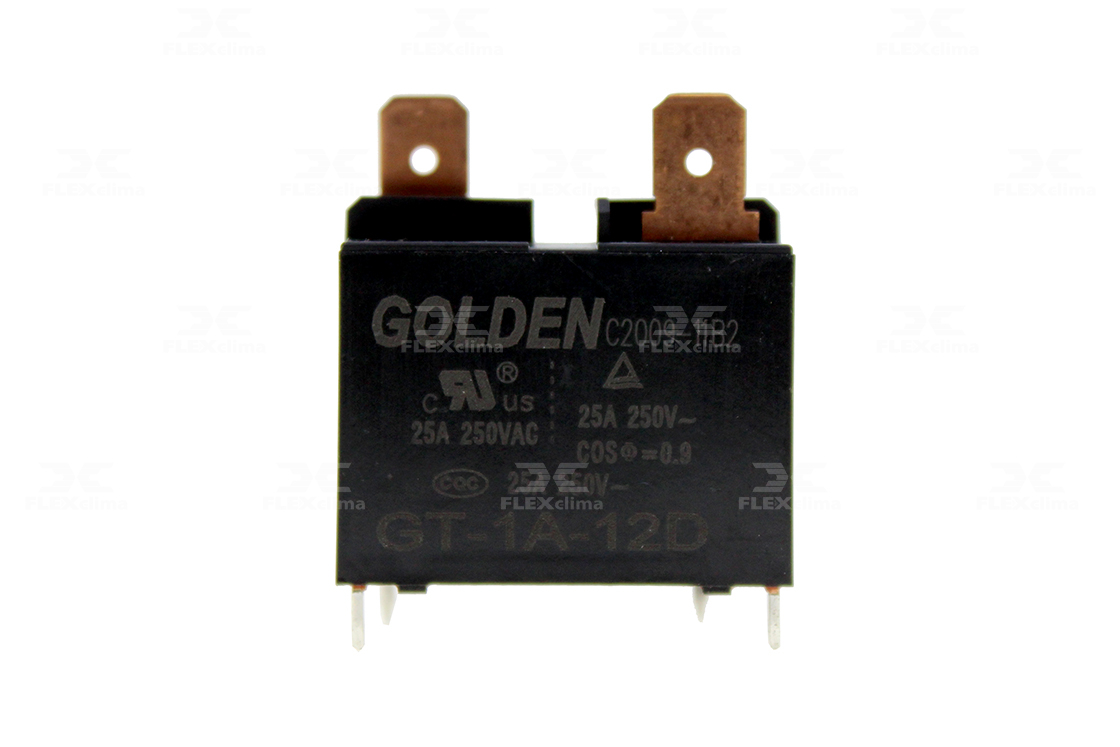

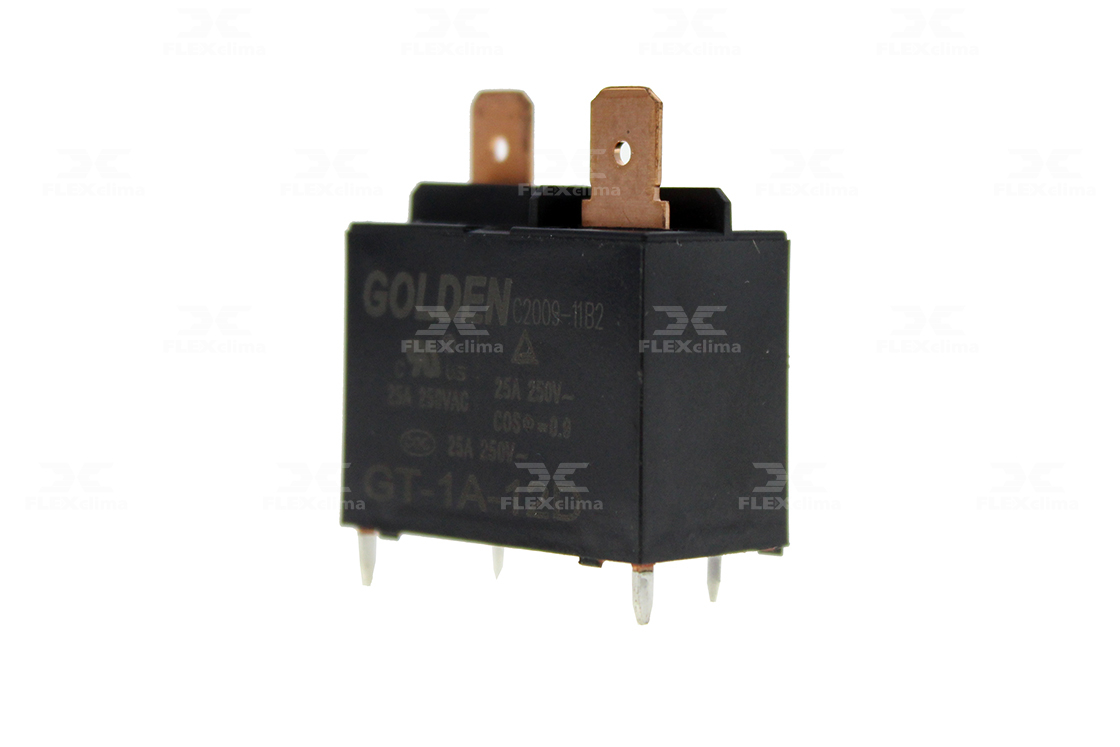

Relé GOLDEN GT-1A-12D é a solução definitiva para reparos em placas eletrônicas de unidades evaporadoras.

Sendo um modelo Universal, ele é compatível com cerca de 90% das marcas do mercado, substituindo com perfeição componentes de marcas como Omron, Sanyou e ETE.

Por que escolher este Relé?

• Alta Capacidade:Suporta até 25A, garantindo maior resistência a picos de energia.
• Universal: Projetado para atender as principais marcas de Ar Split (Samsung, LG, Midea, Consul, Philco, Gree, Elgin, Komeco, entre outras).
• Qualidade Original: Peça nova, com selos de certificação (UL, CQC, TUV).

• Ficha Técnica :
•  Modelo: GT-1A-12D (Série C1504-11A)
• Tensão da Bobina: 12V DC
• Capacidade de Carga: 25A / 250V AC
• Configuração de Contatos: 1 NA (Normalmente Aberto)
• Código da Peça: 3501-001268

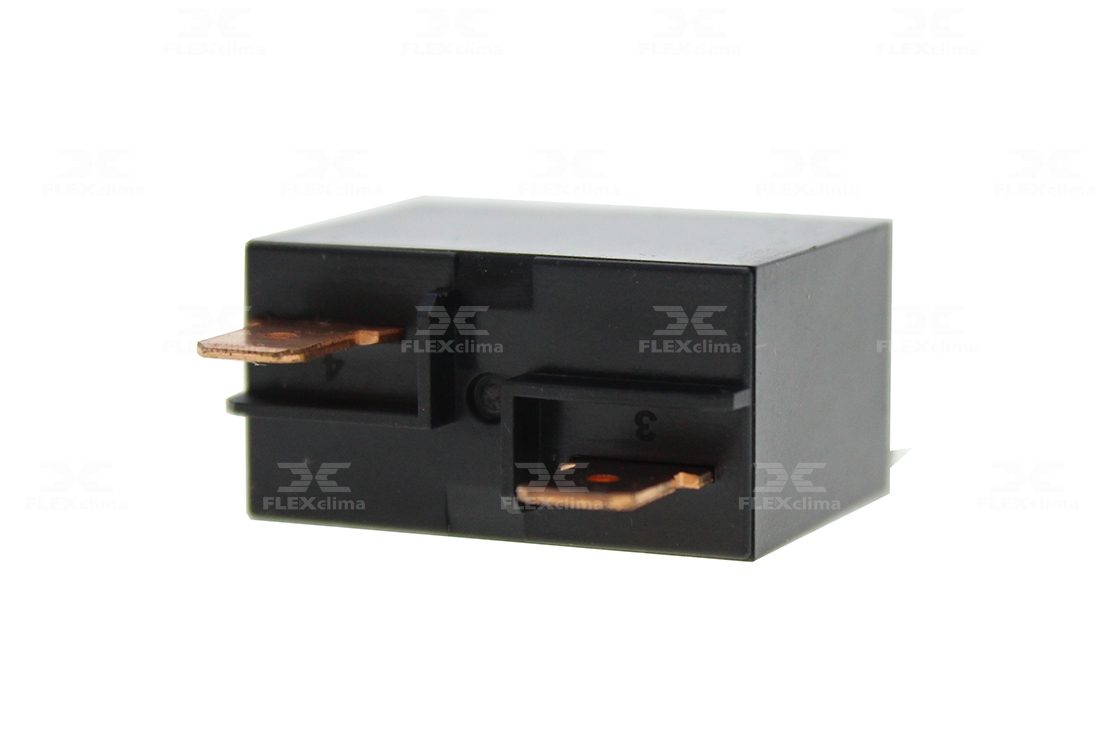

• Terminais: 2 pinos para solda na placa + 2 terminais faston superiores.

Este modelo substitui diretamente os seguintes relé similares:

OMRON: G4A-1A-E-12VDC
SANYOU: SFK-112DM (12VCC 20A)
ETE: PCF-112D1M-2

ALGUNS MODELOS SAMSUNG COMPATIVEIS

AQ09ESBTNXAZ
AQ09ESBTXAZ
AQ09UBBNXAZ
AQ09UBTXAZ
AQ09UWBUXAZ
AQ09UWBUYAZ
AQ12ESBTXAZ
AQ12UBANXAZ
AQ12UBTXAZ
AQ12UWBUNXAZ
AQ12UWBUNYAZ
AQ12UWBUXAZ
AQ12UWBUYAZ
AQ12UWBVXAZ
AQ12UWBVYAZ
AQ18ESBTXAZ
AQ18UBANXAZ
AQ18UBTXAZ
AQ18UWBUXAZ
AQ18UWBUYAZ
AQ24ESBTXAZ
AQ24UWBUNXAZ
AQ24UWBUXAZ
AQV09PSBTXAZ
AQV12PSBTXAZ
AR09HCSUAWQ/AZ
AR09HCSUAWQNXAZ
AR09HCSUAWQNYAZ
AR09HCSUAWQXAZ
AR09HCSUAWQYAZ
AR09HCSUBWQ/AZ
AR09HCSUBWQNXAZ
AR09HCSUBWQNYAZ
AR09HCSUBWQXAZ
AR09HCSUBWQYAZ
AR09HPSUAWQXAZ
AR09HPSUAWQYAZ
AR09HSSPASN/AZ
AR09KCFUBWQNAZ
AR09KCFUBWQXAZ
AR09KCFUBWQYAZ
AR09KCSUBWQNAZ
AR09KCSUBWQXAZ
AR09KCSUBWQYAZ
AR09KPFUAWQXAZ
AR09KPFUAWQYAZ
AR09KPSUAWQXAZ
AR09KPSUAWQYAZ
AR12HCSUAWQ/AZ
AR12HCSUAWQNXAZ
AR12HCSUAWQNYAZ
AR12HCSUAWQXAZ
AR12HCSUAWQYAZ
AR12HPSUAWQXAZ
AR12HPSUAWQYAZ
AR12HSSPASN/AZ
AR12HVSPASN/AZ
AR12KCFUAWQNAZ
AR12KCFUAWQXAZ
AR12KCFUAWQYAZ
AR12KCSUAWQNAZ
AR12KCSUAWQXAZ
AR12KCSUAWQYAZ
AR18HCSUAWQ/AZ
AR18HCSUAWQXAZ
AR18HCSUAWQYAZ
AR18HPSUAWQXAZ
AR18HPSUAWQYAZ
AR18KPFUAWQXAZ
AR18KPFUAWQYAZ
AR24HCSUAWQNAZ
AR24HPSUAWQ/AZ
AR24HPSUAWQNAZ
AR24KPFUAWQ/AZ
AR24KPFUAWQNAZ
AS09ESBTNXAZ
AS09ESBTXAZ
AS09UBANXAP
AS09UBANXAZ
AS09UBBNXAZ
AS09UBTXAZ
AS09UGANXFA
AS09UUAN2DAJ
AS09UUAN2ELA
AS09UUAN2SIM
AS09UWBUNXAZ
AS09UWBUNYAZ
AS09UWBUXAZ
AS09UWBUYAZ
AS09UWBVNXAZ
AS09UWBVNYAZ
AS09UWBVXAZ
AS09UWBVYAZ
AS12ESBTNXAZ
AS12ESBTXAZ
AS12UANXTC
AS12UBANXAP
AS12UBANXAX
AS12UBANXAZ
AS12UBBNXAZ
AS12UBFNXAX
AS12UBTXAZ
AS12UGANXFA
AS12UGBN1ORT
AS12USBANXAP
AS12USBANXLA
AS12UUAN2DAJ
AS12UUAN2ELA
AS12UUAN2SIM
AS12UUANMID
AS12UUANUMG
AS12UUANXSG
AS12UWBUNXAZ
AS12UWBUNYAZ
AS12UWBUXAZ
AS12UWBUYAZ
AS18ESBTNXAZ
AS18ESBTXAZ
AS18UANXTC
AS18UBANXAP
AS18UBANXAX
AS18UBANXAZ
AS18UBTXAZ
AS18USBANXAP
AS18USBANXLA
AS18UWBUNXAZ
AS18UWBUNYAZ
AS18UWBUXAZ
AS18UWBUYAZ
AS24ESBTXAZ
AS24UBTXAZ
AS24UWBUNXAZ
AS24UWBUXAZ
ASV09PSBTXAZ
ASV12PSBTXAZ

ALGUNS MODELOS DE PLACAS SAMSUNG COMPATIVEIS
DB93-08495A
DB93-08495C
DB93-09795A
DB93-09795C
DB93-09795D
DB93-09795E
DB93-09795F
DB93-09795G
DB93-09795H
DB93-10859D
DB93-10859K
DB93-10859L
DB93-10860A
DB93-10860B

ALGUNS MODELOS DE PLACAS LG COMPATIVEIS
6871A10056D
6871A10143L
6871A10143S
6871A20925A
6871A20925C
6871A20925E

ALGUNS MODELOS LG COMPATIVEIS
TSNH092EFW1
TSNH122EFW5
TSNH122ERM1
TSNC092EFW5
TSNC092ERM0
TSNC092ERM1
TSNC122EFW5
TSNC122ERM0
TSNC122ERM1
TSNC122ERM2
TSNH1828FW5
TSNH1828RM0
TSNH1828RM1
TSNH2428FW1
TSNH2428RM0
TSNH2428RM1
TSNH2428RM1
LSNC2423MM1
LSNC2423MM3
LSNC2423RM1
LSNC2423RM3
LSNH2423MM1
LSNH2423MM3
LSNH2423RM1
LSNH2423RM3
LSNH1823MM3
LSNH1823RM1
LSNH1823RM3
LSNH1823MM1

ALGUNS MODELOS DE PLACAS GREE COMPATIVEIS
300002000425
300002000426
300002000428
300002000430
300002000432
300002000436
300002000438
300002061262
300002061303
300002061304
300002061406
300002061810
300002061966
300002062028
300002062528
300002062546
300002062614
300002062615
300002063096
300002063262
300002063335
300027000305
300027000310
30135000110
30135000112
30135000113
30135000123
30135000125
30135000133
30135053
30135054
30135070
30135095
30135096

ALGUNS MODELOS GREE COMPATIVEIS
GHCN60NF3C/O
GHCN60NH3C/O
GWC07AGA-K6DNA1A/I
GWC07AGA-K6DNA1AW/I
GWC09AAB-D3NNA1C/I
GWC09AAB-D3NNA1CN/I
GWC09AGA-D3DNA1A/I
GWC09AGA-D3DNA1AW/I
GWC09AGA-D3DNA4A/I
GWC09AGA-D3DNA4AW/I
GWC09AGAXA-K3DNA1C/I
GWC09AGAXA-K3DNA2C/I
GWC09AGB-D3DNA1A/I
GWC09AGB-K6DNA1A/I
GWC09AGB-K6DNA1D/I
GWC09QA-D3DNB8M/I
GWC09QA-D3NNB4D/I
GWC09QB-D3NNB4A/I
GWC09QB-D3NNB4C/I
GWC12AAC-D3NNA1D/I
GWC12AGB-K6DNA1A/I
GWC12AGBXA-K3DNA1A/I
GWC12AGC-D3DNA4J/I
GWC12AGC-D3DNA4JW/I
GWC12QC-D3DNB8M/I
GWC12QC-D3NNB4A/I
GWC12QC-D3NNB4B/I
GWC12QC-D3NNB4D/I
GWC18AAD-D3NNA1D/I
GWC18AAD-D3NNA1DN/I
GWC18ACD-D3DNA1B/I
GWC18AGD-D3DNA4D/I
GWC18AGD-D3DNA4DW/I
GWC18QD-D3NNB4C/I
GWC24ACE-D3DNA1B/I
GWC24AGE-D3DNA4B/I
GWC24QD-D3DNB8M/I
GWC24QE-D3DNB8M/I
GWCN12DBND1A3A/I
GWCN12DBND1A3B/I
GWCN18DCND1A1A/I
GWH09AAB-D3NNA1C/I
GWH09AGA-D3DNA4B/I
GWH09AGA-D3DNA4BW/I
GWH09QA-D3DNB8M/I
GWH09QA-D3NNB2A/I - IMPORTADA
GWH09QB-D3NNB4A/I
GWH09QB-D3NNB4B/I
GWH09QB-D3NNB4C/I
GWH12AAC-D3NNA1D/I
GWH12AGC-D3DNA1J/I
GWH12AGC-D3DNA1JW/I
GWH12AGC-D3DNA4J/I
GWH12AGC-D3DNA4JW/I
GWH12QB-D3NNB2A/I - IMPORTADA
GWH12QC-D3DNB8M/I
GWH12QC-D3NNB4A/I
GWH18AAD-D3NNA1D/I
GWH18AAD-D3NNA1DN/I
GWH18ACD-D3DNA1B/I
GWH18AGD-D3DNA4D/I
GWH18AGD-D3DNA4DW/I
GWH18QD-D3DNB8M/I
GWH18QD-D3NNB4B/I
GWH18QD-D3NNB4C/I
GWH24ACE-D3DNA1D/I
GWH24AGE-D3DNA4B/I
GWH24QD-D3DNB8M/I
GWH24QE-D3DNB8M/I
GWH24QE-D3DNB8M/O
GWHN07DAND1A3A/I
GWHN09DAND1A3A/I
GWHN12DBND1A3A/I
GWHN12DBND1A3B/I
GWHN18DCND1A1A/I
WZ14301CV15
